XCLASS PDB FCHUB-12S

Designed specificaly for XClass Quad. supports 8~60V DC input, 5V 5A and 12V 4A regulators, high precision current sense up to 440A range.

Album & INFO

Spec.& Manual

Quick Start Guide  (PDF 15M)


PDB

  • Input voltage range: 8~60V (3~12S LiPo)
  • 4x70A cont, 4x110A burst
  • 4x ESC power /signal/ telemetry pads
  • Current Senor: 440A,  3.3V ADC,  Scale 75
  • 2x LED indicators for 5V, 12V

FFC connection

  • Compatible with MATEKSYS FC F405-STD, F722-STD
  • VTX: Video Transmitter signal
  • T5 & R5: TX5 and RX5 of F405-STD/F722-STD

BEC 5V output (5V pad)

  • Voltage: 5.0 +/- 0.1VDC
  • Continuous current 5 Amps,  Max.6A
  • Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery

BEC 12V output (12V pad)

  • Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
  • Continuous current 4 Amps,  Max.5A
  • Input voltage<12V,  Output voltage = Input voltage
  • Probably there is audible sound in the BEC12V inductor when Input voltage<12V
  • Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery

Switchable 12V output (SW12V pad)

  • 12V ON/OFF can be switched via PINIO
  • can be use for powering VTX,LED etc.

BEC 3.3V output

  • Linear Regulator
  • Continuous current: 500mA

Physical

  • Mounting: 30.5 x 30.5mm, Φ3mm
  • Dimensions: 55 x 50 x 6 mm
  • Weight: 21g

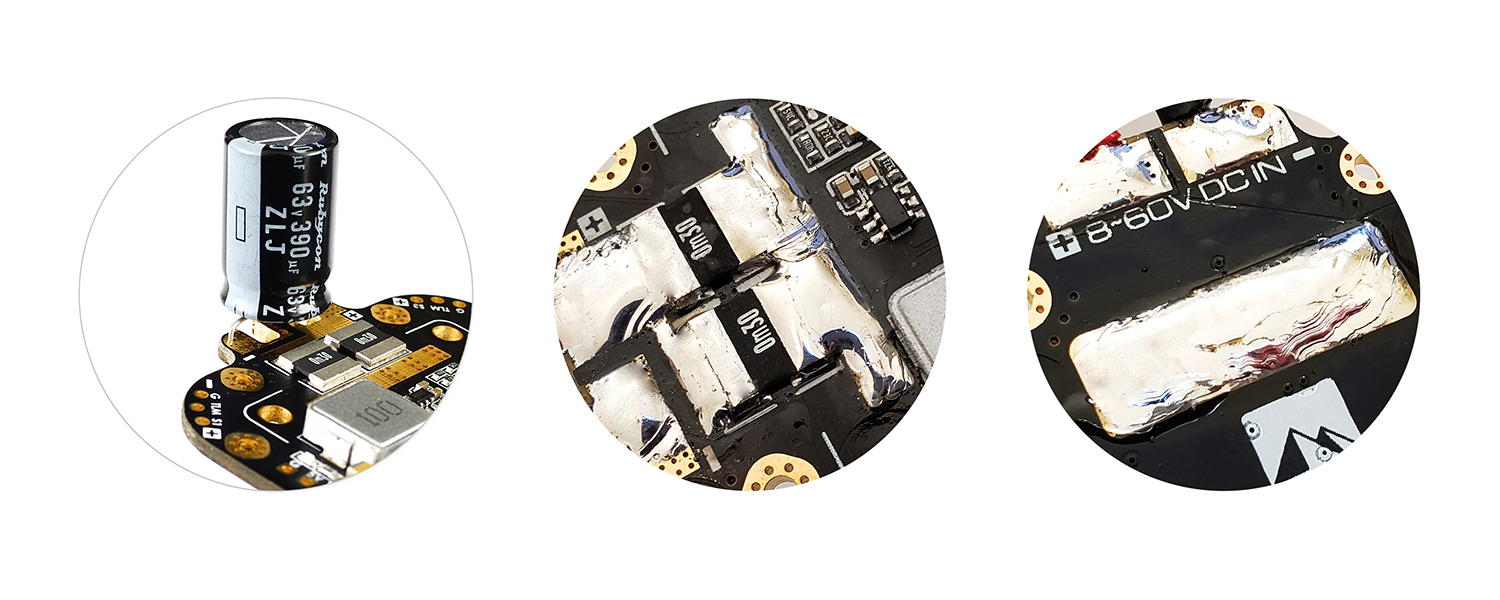

Soldering Tips
  1. 350~400°C,  Sn63Pb
  2. Enhance the pads nearby current-sense resistor with soldering
Video

FCHUB-12S & F722-STD combo

Flight & video by Jason Bouslaugh
