Fixed Wing PDB FCHUB-W

Special PDB for Fixed Wings, 4x BEC & current sensor on board.

Album & INFO

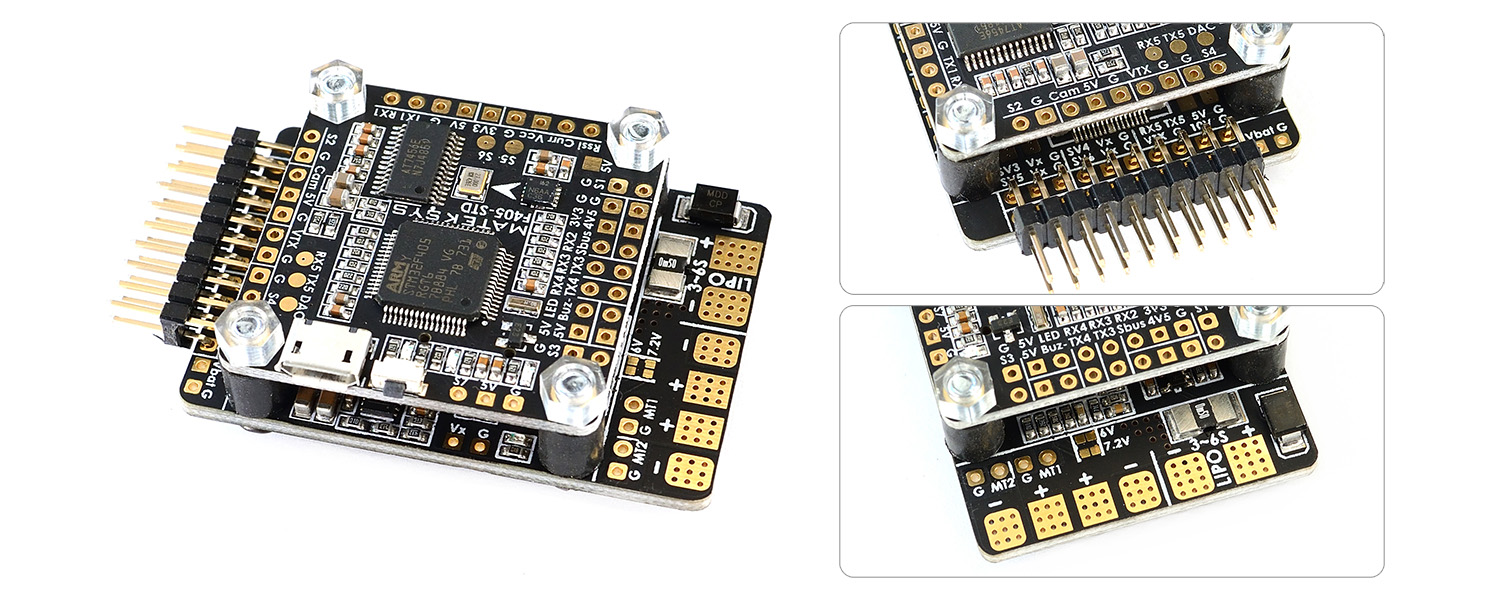

FCHUB-W_2 FCHUB-W_3 FCHUB-W_4 FCHUB-W_5 FCHUB-W_6FCHUB-W_7 FCHUB-W_P

Spec.& Features

PDB

  • Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
  • 2x ESC power pads
  • Current Senor: 104A,  3.3V ADC,  Scale 317
  • 4x BEC on board
  • 3x LED indicators for 5V, 10V & Vx

Soldering Holes & Pads

  • + & – : Bettery & ESC power pads
  • Curr: Current sensor output
  • Vbat: Bettery voltage
  • G: Ground
  • 3V3: LDO 3.3V
  • 5V: BEC 5V
  • 10V: BEC 10V
  • Vx: BEC 5V/6V/7.2V ADJ

FFC connection

  • Compatible with MATEKSYS FC F405-STD, F722-STD, F405-OSD
  • MT1: Motor1 of INAV Flying Wing & Airplane
  • MT2: Motor2 of INAV Flying Wing & Airplane
  • SV3~SV6: Servo 3~6 of INAV Flying Wing & Airplane
  • VTX: Video Transmitter signal
  • TX5 & RX5: UART5 of F405-STD/F722-STD/F405-OSD

BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS module
  • DC/DC synchronous buck regulator
  • Voltage: 5.0 +/- 0.1VDC
  • Continuous current: 2 Amps, Max.3A
  • Output Ripple: 20mV (VIn=24V, VOut=5V@2A load)
  • Short-circuit tolerant (2 seconds)

BEC 10V output

  • Designed for Video Transmitter, Gimble
  • DC/DC synchronous buck regulator
  • Voltage: 10.0 +/- 0.2VDC (Input voltage >11V)
  • Continuous current: 2 Amps, Max.3A
  • Output Ripple: 20mV (VIn=24V, VOut=10V@2A load)
  • Short-circuit tolerant (2 seconds)

BEC Vx output

  • Designed for Servos
  • DC/DC synchronous buck regulator
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 5 Amps, Max.5.5A
  • Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
  • Short-circuit tolerant (2 seconds)

BEC 3.3V output

  • Designed for Baro / Compass module and Spektrum RX
  • Linear Regulator
  • Continuous current: 500mA

Physical

  • Mounting: 30.5 x 30.5mm, Φ3mm
  • Dimensions: 52 x 36 x 6 mm
  • Weight: 13g
Connection Guide (INAV)

Pls download inav_1.8.0 for F405-STD here if using it on Airplane     inav_1.8.0_MATEKF405
