RGB LED CIRCLE X6-12V

SKU: RGBX6-12

More Info

English

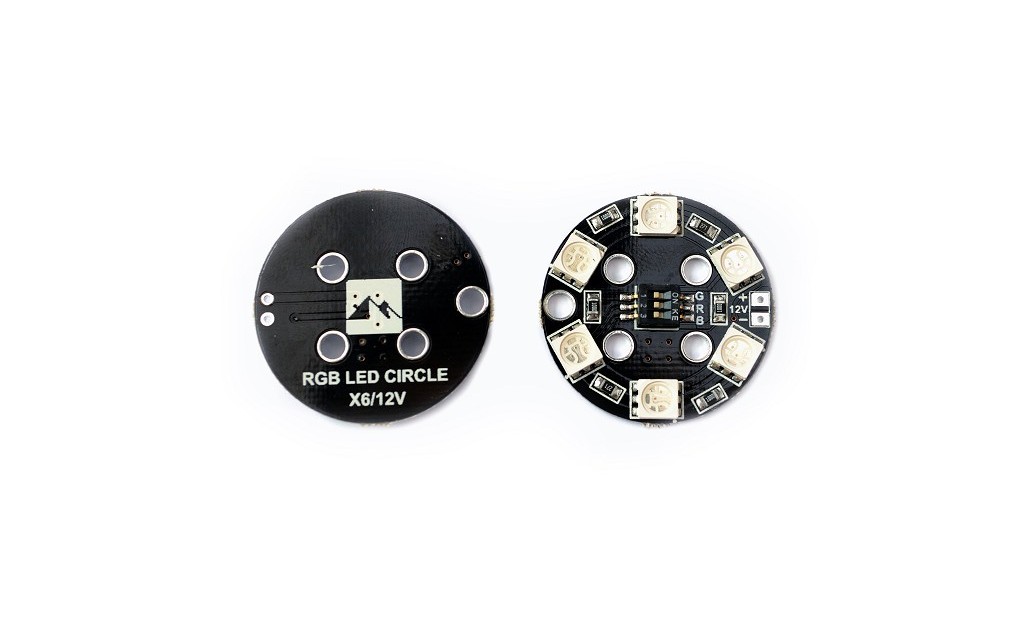

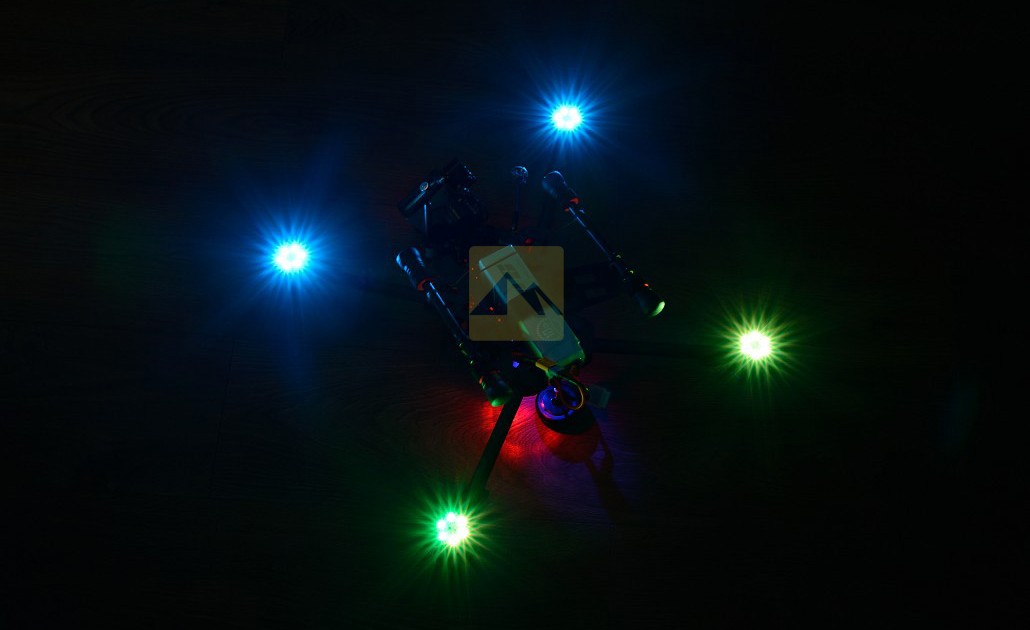

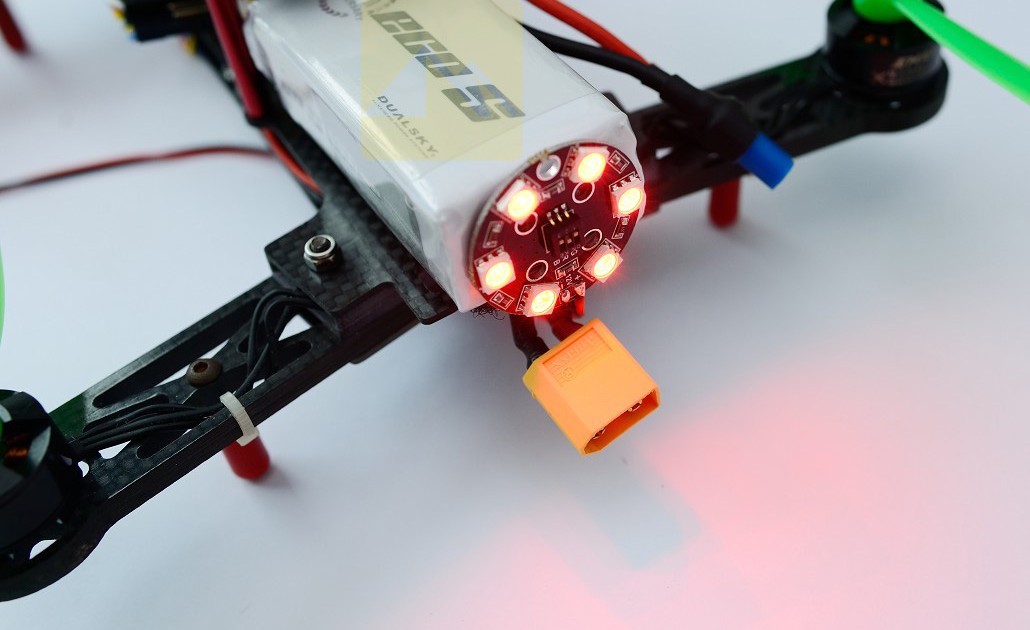

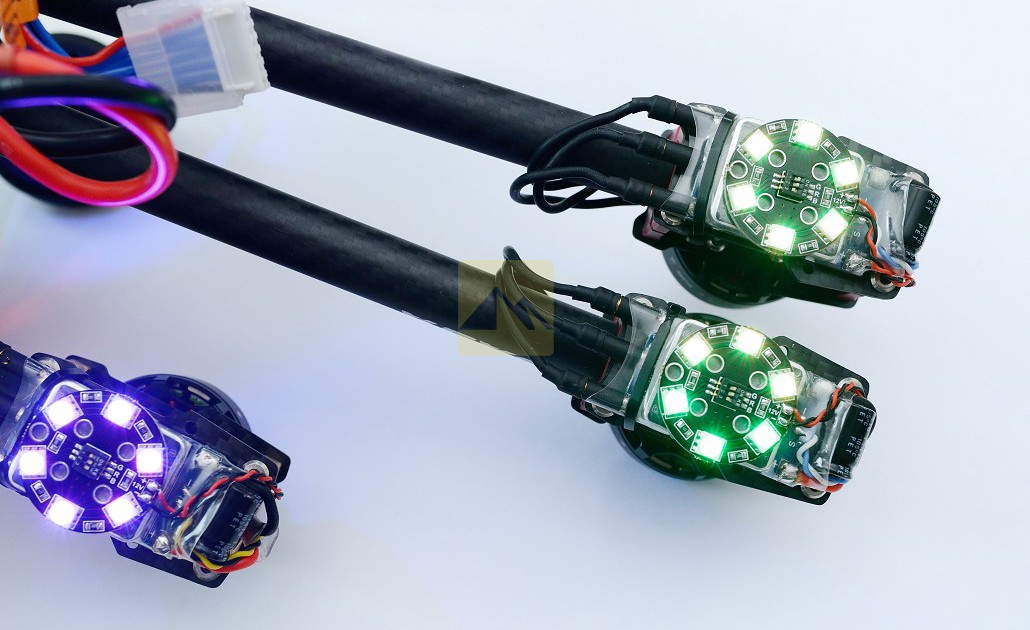

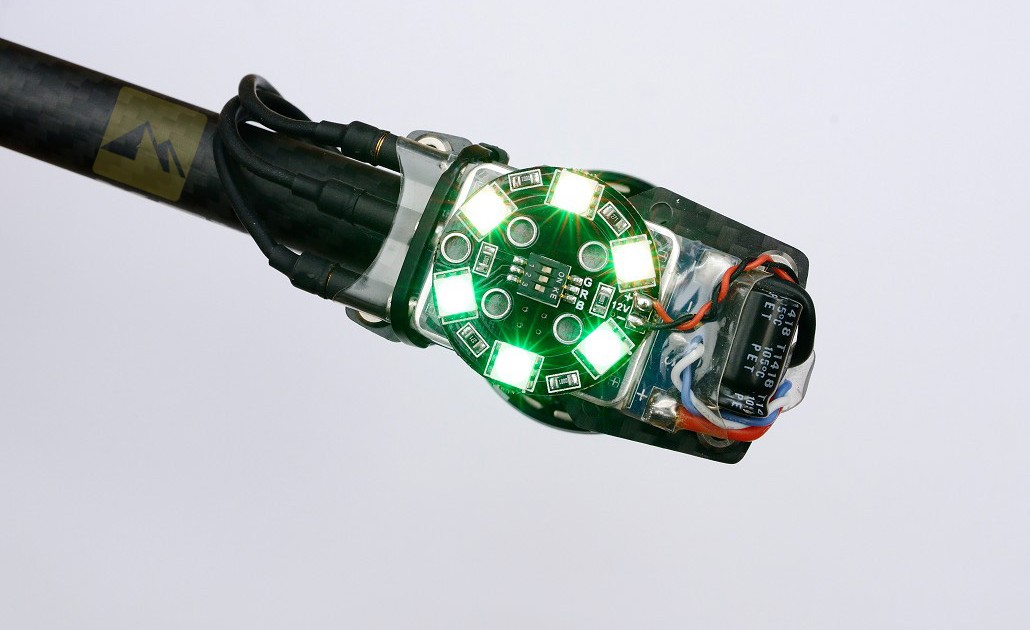

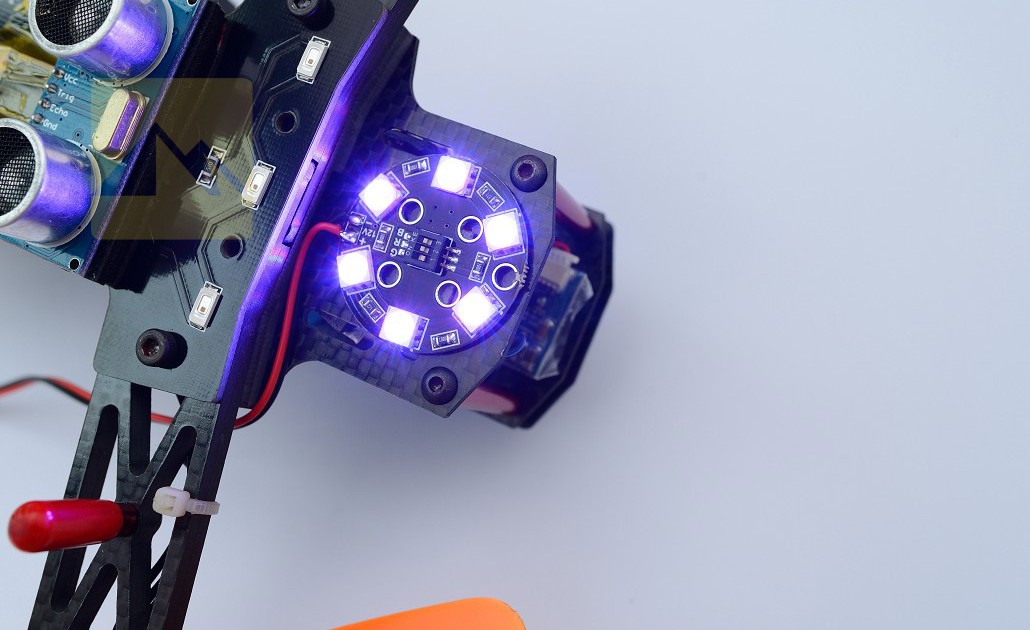

Matek RGB LED CIRCLE X6/12V comes with six RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Specifications:

  • INPUT: 10~13V DC, 3S LiPo,12VBEC

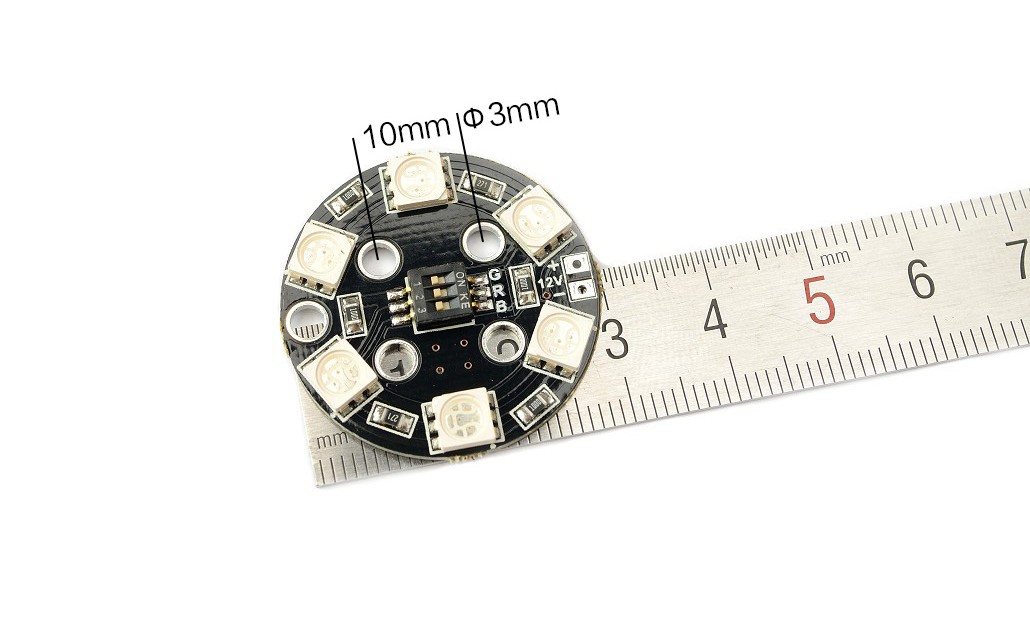

  • Size: Circle  Φ30mm (10mm /Φ3mm Mounting)
  • Select the colors with 3pin 1.25mm Code switch

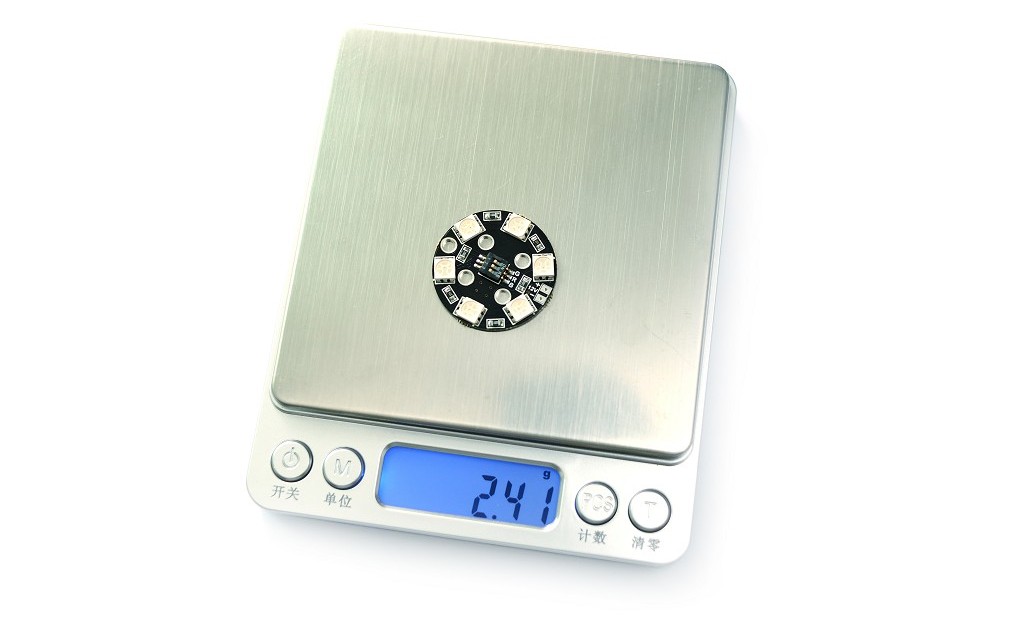

  • Weight: 2.5g

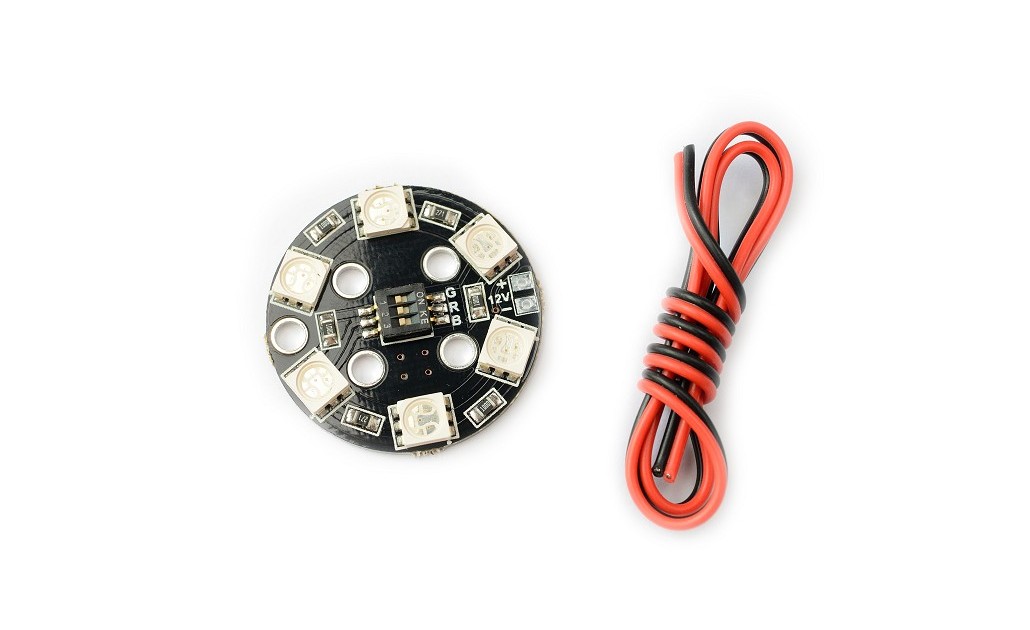

  • Packing:  LED CIRCLE X6/12V, 1pc,   Cable 0.3m
Notes:
  • Comes with a 0.3m long cable, users can cut it to a suitable length;
  • Be ware of the positive and negative poles, as well as the insulation;
  • Switch the related codes to ON, seven colors are selectable;
  • The input is in a range of 10~13V DC, can be powered by 3S Lipo or 12V BEC.
Selectable Colors & Power @12v:
  • B ON =Blue, 0.6W, 0.05A
  • R ON =Red, 0.6W, 0.05A
  • G ON =Green, 0.6W, 0.05A
  • B+R =Megenta, 1.20W, 0.10A
  • B+G =Cyan, 1.20W, 0.10A
  • R+G =Yellow, 1.20W, 0.10A
  • B+R+G =White, 1.80W, 0.15A
中文

圆形 12V LED灯板采用6颗RGB5050灯珠,板载进口拨码开关,通过拨动相应的开关,共有7色可选。单灯板最大功率1.8W,超亮。可用于多轴,穿越机,固定翼,直升机,车模等灯光DIY。

参数:

  • 输入: 10~13V DC,3S LiPo电池,12V BEC
  • 拨码开关选色(7色)
  • 尺寸: 灯板直径30mm,安装孔距10mm,孔径3mm
  • 重量: 2.5g
  • 包装: X6-12V圆形灯板1片, 红黑电源线30cm

使用方法:

  • 附带一根30cm长红黑电源线,用户需根据所用长短自己裁剪并焊接;
  • 注意输入的正负极性和绝缘;
  • 拨动相应的开关到ON可选择7种颜色;
  • 建议背后用双面泡棉胶粘在机体上;例如多轴的电机座下方。
  • 输入电源10~13V之间均可,可用3S LiPo供电,或者12V BEC。
  • 灯板亮度高,请勿长时间直视。
  • 演示视频:http://v.youku.com/v_show/id_XMTI3OTIwNjA4OA==.html

以下基于12V输入时功率和电流

  • B ON =蓝色, 0.6W, 0.05A
  • R ON =红色, 0.6W, 0.05A
  • G ON =绿色, 0.6W, 0.05A
  • B+R ON =紫色, 1.2W, 0.10A
  • B+G ON =青色, 1.2W, 0.10A
  • R+G ON =黄色, 1.2W, 0.10A
  • B+R+G ON =白色, 1.8W, 0.15A
