Video Receiver 1.2/1.3GHz, VRX-1G3
End of life, replaced by VRX-1G3-V2
Spec. & Settings
Features & Specifications
- Receiving frequency: 9CH (1080MHz to 1360MHz)
- RX Sensitivity: -95dBm
- Band-pass filter 950MHz~1450MHz
- Dual input options: 4~5V via pins or 6-30V via pads
- Button control and LED indicators
- On board regulator output: 5V 2A @ input voltage 6~30V
- Current Consumption: 0.3A @5V
- Video format: NTSC or PAL
- Video Output impedance: 75Ω, Typ.
- Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
- ANT. input impedance: 50Ω, Typ.
- RF Connector: SMA
- Weight: 14g ( w/o antanna)
- Size: board 43*27mm
- 2.54mm pins and PCB size are compatible with FS module

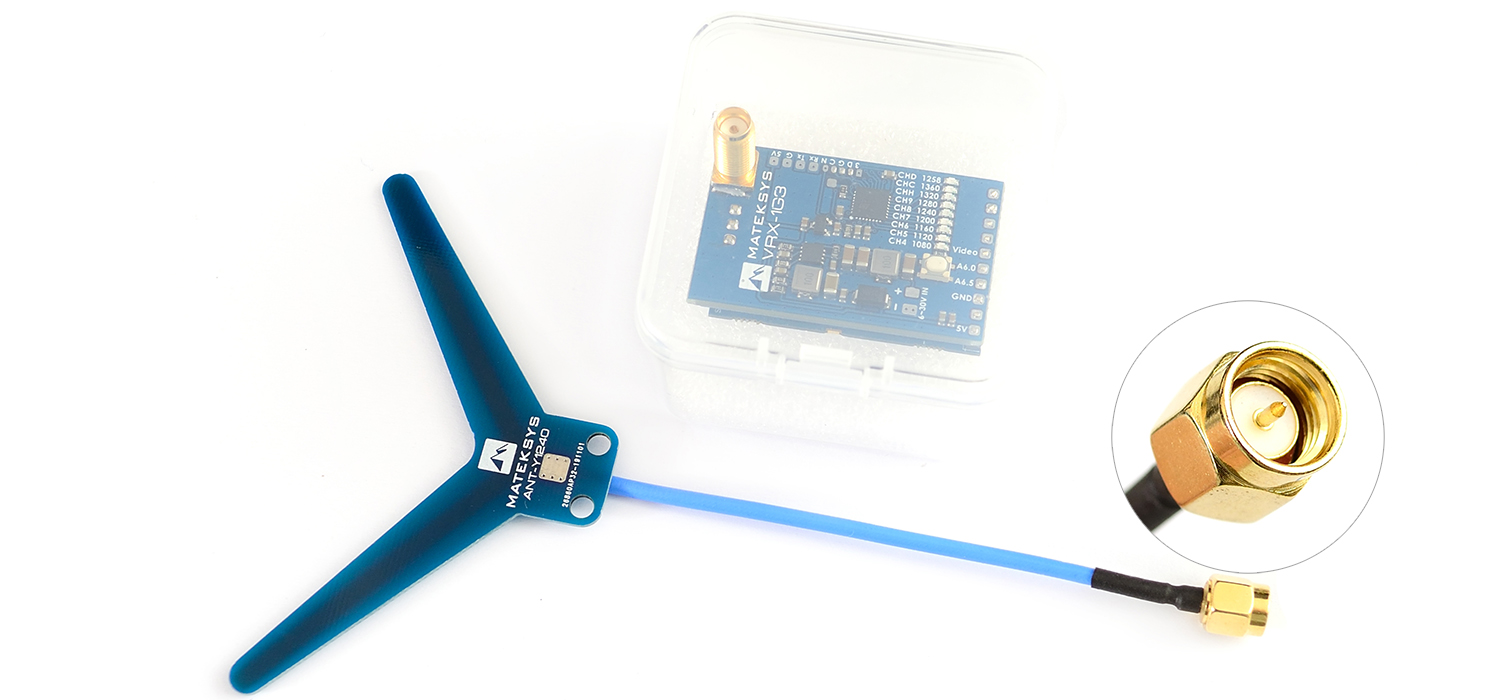

- 1x 1.2/1.3G Video receiver VRX-1G3
- 1x Dipole antenna_SMA, center freq 1240MHz
- Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
- Press the button to select the frequency
- When the LED blinks at new frequency, RF input is enabled on this frequency.
- New frequency will be saved if no button action within 3 seconds
- If you received the VRX module with 10 pins, just cut off the S2 pin, S2 is useless for FS dock.
- only 5pins (5V, Gnd, A6.5, A6.0, Video) work with FS dock
