Video Transmitter 5.8G VTX-mini

6~36V Input, 40CH, Pit/25/200/400/800mw, Button+LED control, CMS control, PINIO Power switch, Microphone, convertible 20 to 30mm mounting

Gallery

Spec.& Features

VTX-mini Quick Start Guide (PDF)

Features & Specifications

40CH(A/B/E/F/R Band)
Any Freq/band can be disabled or enabled by CLI command
Variable Output Power: PIT, 25, 200, 400, 800mW
Button control and LED indicators
CMS control(Tramp protocol) via FC Uart _Tx
Switchable VTX input power via FC PINIO
Constant full frequency band power
Clean powerup and frequency switching
Built-in microphone
Upgradeable firmware
Convertible 20 to 30mm mounting

Weight: 4.5g (VTX-mini only, w/o antanna)
Size1: 28*28*4mm w/20mm_Φ3mm mounting
Size2: 36*36*5mm w/30.5mm_Φ3mm mounting

Includes

1x 5.8G Video transmitter VTX-mini
1x MMCX 5.8G whip antenna, 8cm
1x 20mm to 30.5mm conversion plate

Settings

Power Switch

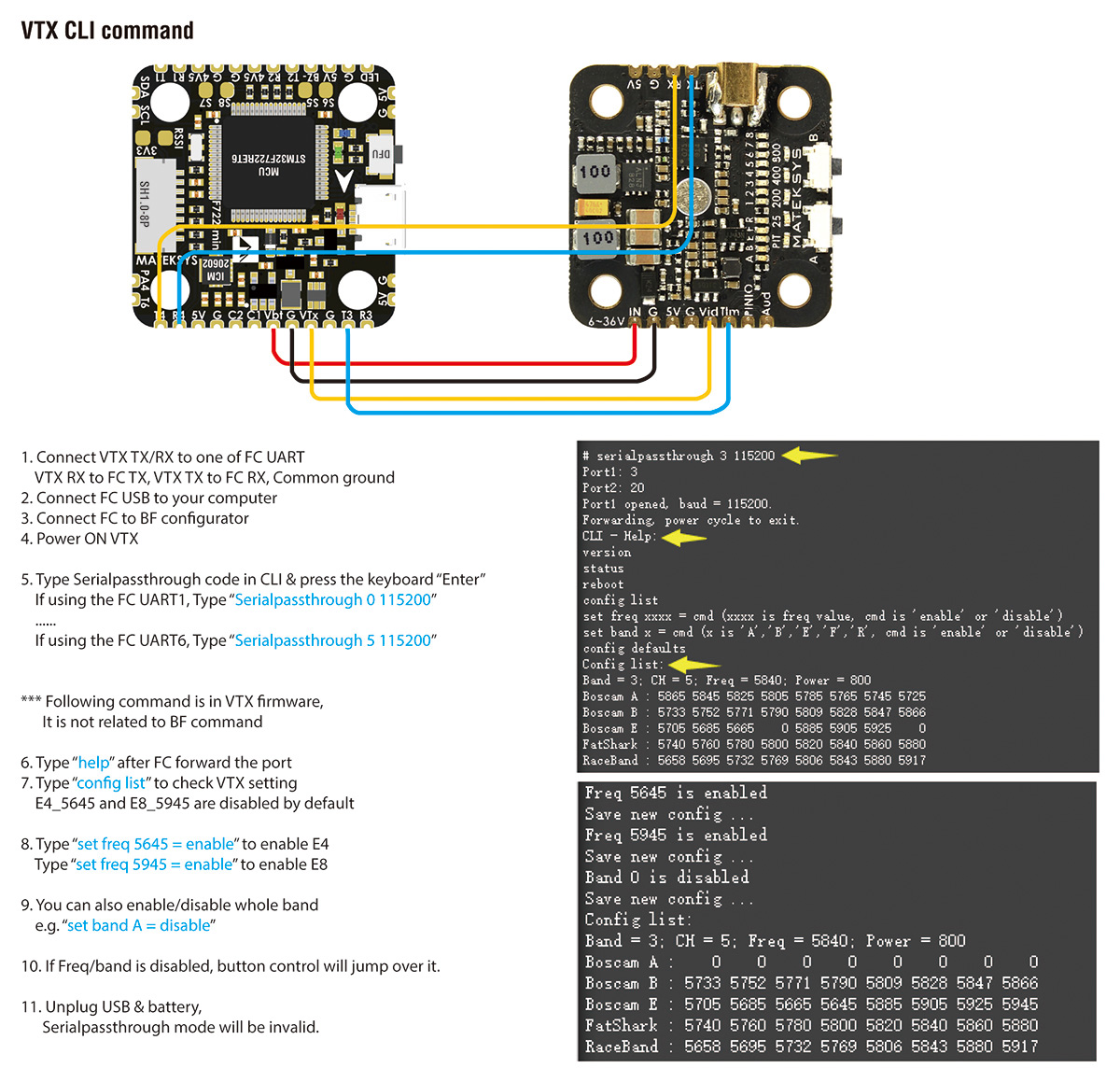

VTX CLI command

vtxtable of BF4.1 or later release

load MATEK_VTX-mini.json in “VTX Transmitter” tab of BF configurator

or

Copy and paste following command into CLI of BF4.1 or later release

vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BOSCAM_A A 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 4
vtxtable powervalues 25 200 400 600
vtxtable powerlabels 25 200 400 800
save

*** use powervalues 600 for VTX 800mw level.

*** Disable “Factory” in frequency list

*** PIT mode is not included in powerlevels
