Flight Controller F405-OSD
STM32F405RGT6, ICM20602, BFOSD, SD Card Slot, VCP+5x UARTs, 6x PWM / DShot outputs
Album & INFOSpec.& FeaturesConnection GuideFrsky SmartPortBOOT(DFU) ModeBetaFlight OSDFirmware & DownloadsTips
- MCU: 168MHz STM32F405
- IMU: 32K ICM20602 accelerometer/gyro (SPI)
- Support 32K Gyro update & 16K PID Loop
- OSD: BetaFlight OSD w/ AT7456E chip
- Blackbox: MicroSD card slot (SD/SDHC)
- VCP, UART1, UART2, UART3, UART4, UART5
- Built in inverter for SBUS input (UART2-RX)
- PPM/UART Shared: UART2-RX
- Support SoftSerial on S5 & S6
- Battery Voltage Sensor: 1:10
- Current Sensor: No (FCHUB-6S option)
- BEC 5V & 10V: No (FCHUB-6S option)
- LDO 3.3V: Max.300mA for Spektrum RX
- Spektrum BIND_PIN: RX4
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- 2x LEDs for FC STATUS (Blue, Red)
- 6x PWM / DShot outputs without conflict
- 5x UARTs
- 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
- 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
- 1x Side-press button for BOOT(DFU) mode

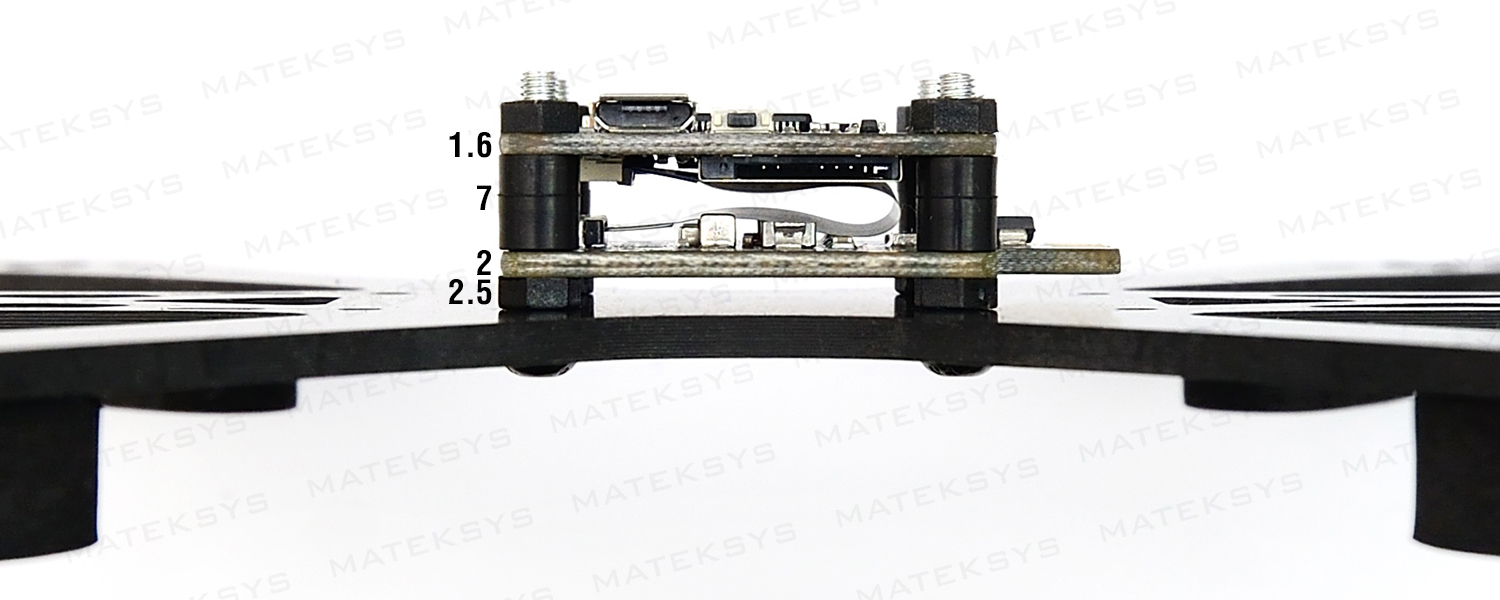

- 1x 16pin bottom mounted FFC Slot for FCHUB-6S connection
- 36x36mm PCB with 30.5mm mounting holes
- w/ 1x 0.5mm*16Pin 5cm Flexible Flat Cable
- w/ 4pcs M3 Anti-vibration Standoffs
Tips: Pull out the plastic locking bar carefully so as not to break it.
Two methods to get the Frsky telemetry working, No.1 or No.2
Update your XSR with latest firmware.
No.1. Enable SoftSerial_TX on S5 or S6 pad
- Don’t need to break the RX cover. Use the inverted TLM signal on the socket.
- Type “resource motor 5 none” in CLI, ENTER,
- Type “resource serial_tx 11 A15” in CLI, ENTER
- Type “Save”, ENTER
- Connect the inverted telemetry signal to S5 pad
No.2. Non-inversion hacks on receiver
- F405 MCU is not equipped with UART port inverters
- Need non-inversion hacks to get the Frsky SmartPort working.
- Connect one of F4 UART-TXs to the non-inverted telemetry signal pad(Yellow circle)
Press & hold the boot button & connect the USB to your computer.
Then release the button, the FC will enter the Boot Mode.
- The default setting for Dshot idle percentage was changed in the new BF version. Pls change the Motor idle throttle value back to 5~6.5, so as not to get the ESC desync.
- Enclosed rubber anti-vibration standoffs are necessary to avoid the vibration woes.
- If you use the 5V VTX, Pls power the VTX from the 5V pad on FCHUB. The ribbon cable can’t bear heavy current. You can also use one pair of silicon wires to connect F405 5V & G pads with FCHUB.
- If Gyro 32kHz & PID loop 16kHz, Blackbox logging rate 1kHz Max.
- SD Card, FAT32 C10, 1~32G, But max.4G space can be used in Blackbox.
