Specifications

• 6V to 70V Operating Input Range(2S-16S Li-xx)
• 5.3V output on “5V” pins/pads
• Support total 3A Continuous load current on all 5V pins/pads
• No protection for reversed input polarity
• Output Short-circuit tolerant (2 seconds)

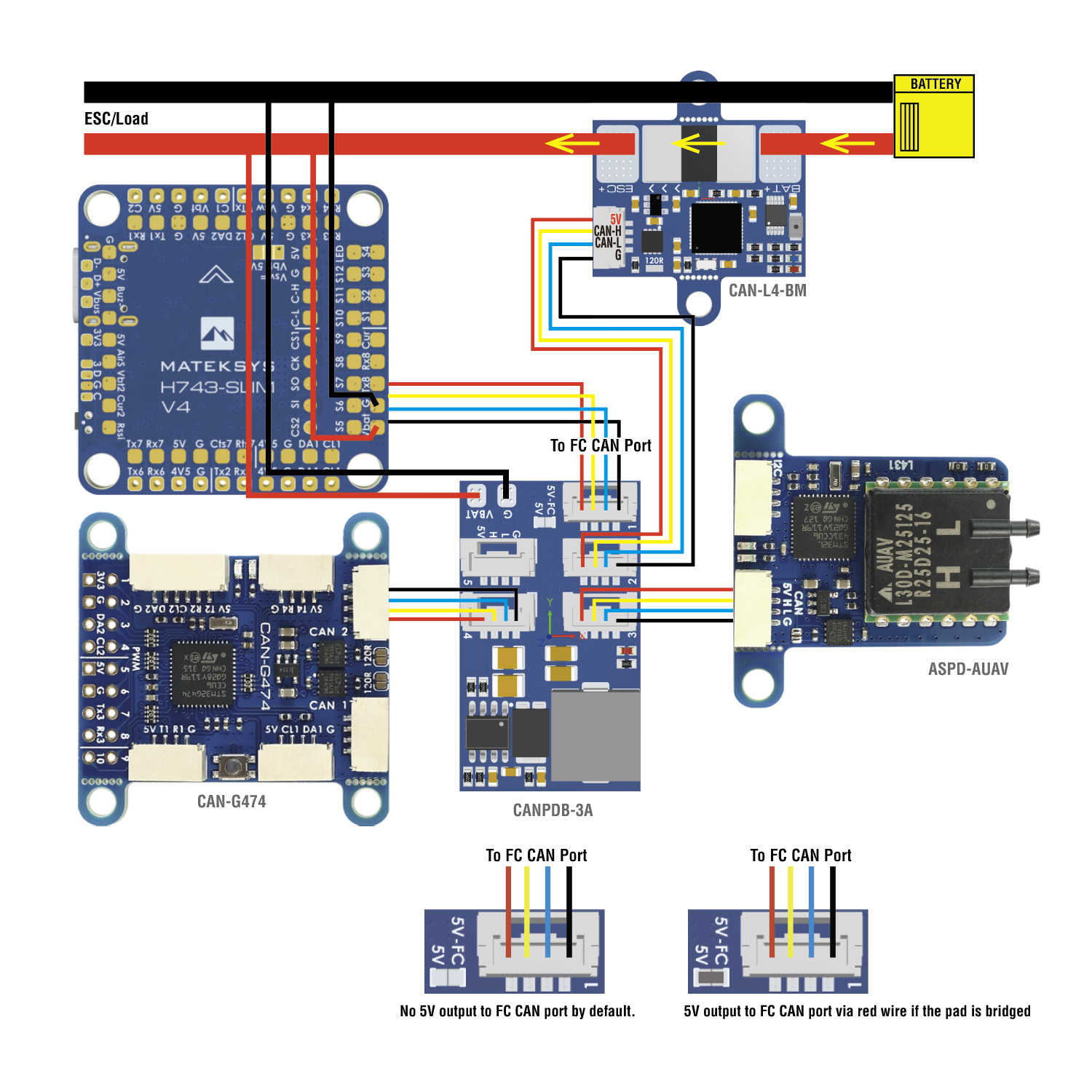

• 5x CAN-H/CAN-L are in parallel
• CAN port connector: JST-GH 4pin(BM04B-GHS-TBT)

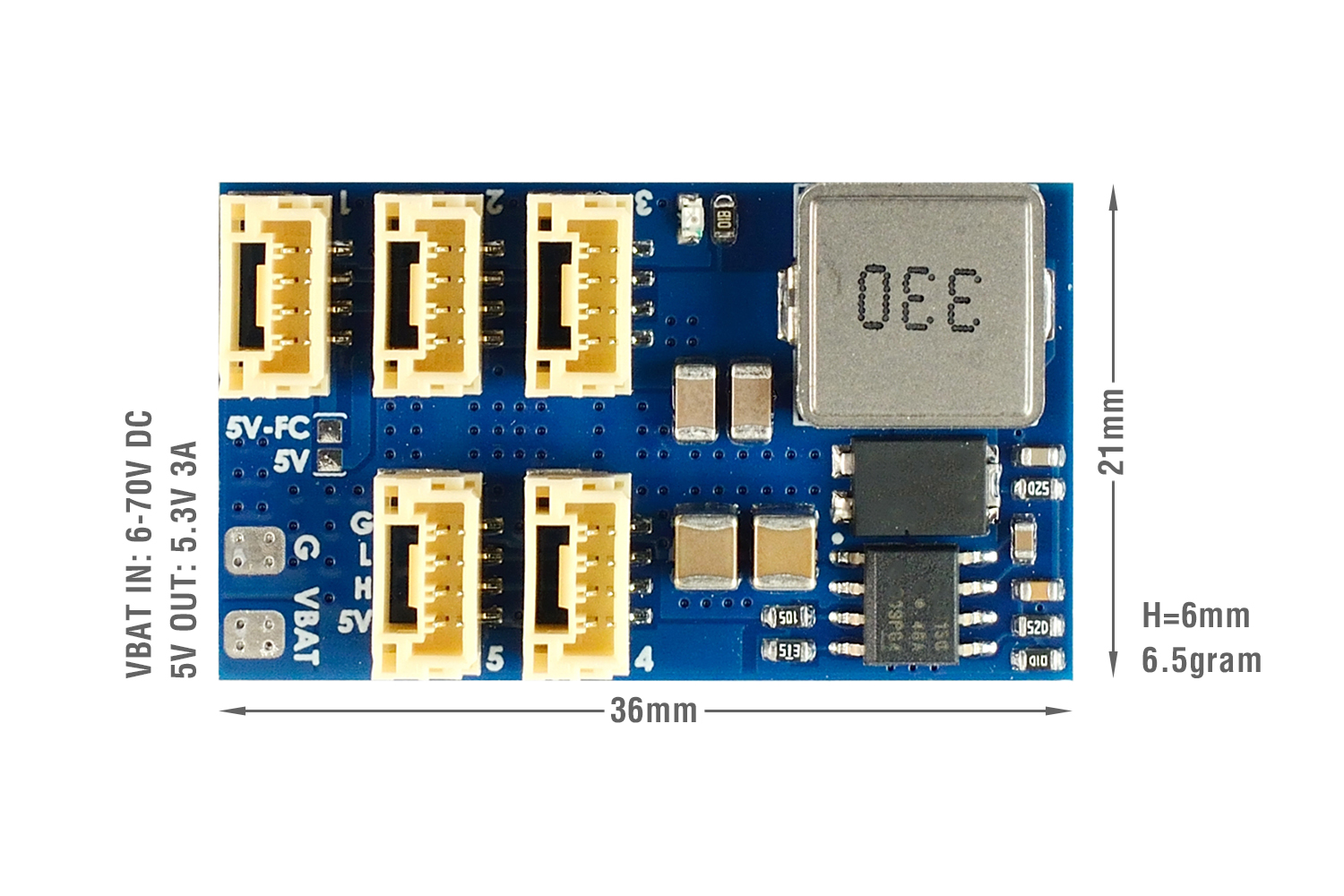

• Size & Weight: 36 x 21 x 6mm, 6.5g
• Packing: 1x CANPDB-3A
• STEP 3D file
